How do you set up a Canon printer?

Want to use your new Canon printer right away? It takes 6 steps to go from a boxed to a working printer. In this article, we'll explain these steps, so you'll have your first printout in your hands in no time.

Prepare the printer
Insert cartridges
Determine grids
Install software
Open software
Connect
Start printing

Summary steps

Set up your printer and then your first printout rolls out in no time. You can do this with the following steps.

Step 1. Prepare the printer
Step 2. Insert cartridges and select language
Step 3. Determine grids and align scanner
Step 4. Install the software
Step 5. Open the software
Step 6. Connect

Beforehand

Canon printer

Setup takes about 20 minutes. What do you need?

Your Canon printer
Your laptop or computer
Ten sheets of A4 paper
A printer cable (optional)

Note: we used the Canon PIXMA MG5750 for this article. The setup of other Canon printers is almost identical. If you encounter differences during installation, check the manual of your printer.

Step 1: prepare the printer

Prepare the printer

Leave the connector of the printer out of the socket.

Remove your Canon printer from its packaging and remove all tape and transport material. Also make sure that you remove any protective material on the inside of the printer. Check the manual to make sure you don't forget any material.
Insert the connector into the socket to power the printer.
Place paper in the paper tray.
Turn on the printer.

Step 2: insert the cartridges and choose the language

Canon cartridges

Insert the cartridges and place sheets of paper in the input tray. The printer is now ready for use.
Turn on the printer and follow the steps.
One of the steps is to choose your language.
Choose your preferred language.

Step 3: determine grids and align the scanner

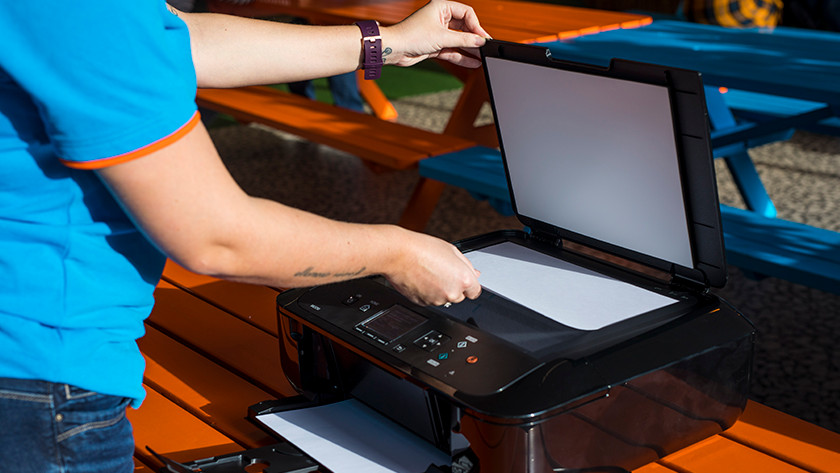

Align the scanner

The printer first prints a print to determine the grids. This means the printer determines where it prints on the paper. Check if you're satisfied with the print. If not? Reset the grids from the settings.
Place the PCB on the scanner to align the scanner.
Run the scan job.

Step 4: install the software

Install software

You've connected your printer. Now, we're going to make sure your computer can control the printer. We install software from Canon for this.

Click on the Canon support link at the bottom of this column.
Enter the product name of your printer in the search bar, or select the correct printer family from the list under 'select product', for example PIXMA, i-SENSYS or MAXIFY. On the next page, you can choose the right line and the exact model. The model and number of your printer can be found on the front of the device, on the box, and in the manual. 3.Select the operating system on which you want to install the printer under Drivers, such as Windows 10 or MacOS High Sierra. Right below it, click on 'Download'.

Step 5: open the software

Open software

Open the file and follow the steps. In the second step, choose whether you want to connect the printer via WiFi or with a printer cable. Installing the software takes a few minutes.

Step 6: connect to WiFi

Connect to WiFi

Step 6.1: connect via WiFi

To connect to WiFi, either follow the steps via the Canon software or use the printer to connect. Connecting to the printer is the easiest option.

On your printer, go to Settings, then to Device Settings, and finally to Wireless LAN Settings.
Select Default settings or Setup without cable.
Select the name of your network. This is called SSID.
Enter the password for your WiFi network.
Press OK.

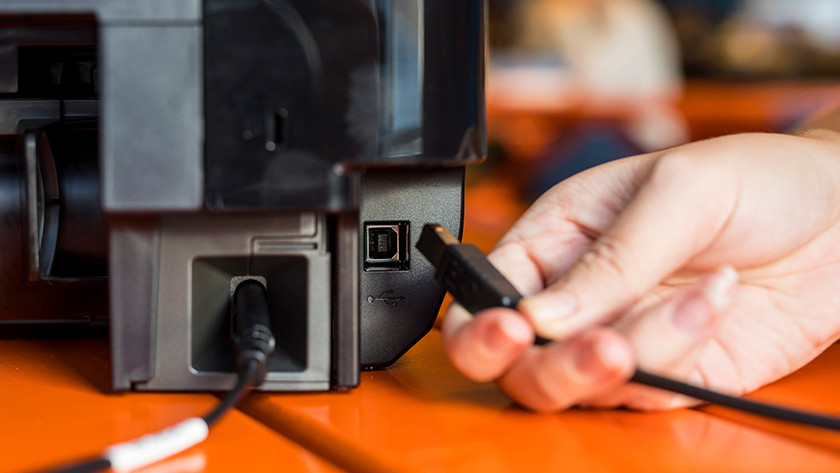

Connect printer cable

Step 6.2: connect via a printer cable (optional)

If you prefer to connect your printer with a printer cable instead of using WiFi, choose this option in the installation software. The rest of the installation is the same as in the previous steps.

Start printing

Printer printout

Your printer is installed. Start with making your first print.
